多糖衍生物键合型手性色谱柱

维多利亚网站vic 色谱柱与填料 多糖衍生物键合型手性色谱柱
概述
耐溶剂型手性色谱柱是通过化学键合型结合的方式将多糖衍生物固定在硅胶上。
现在已有11款:chiralpak® ia/ib n※/ic/id/ie/if/ig/ih/ij/ik/im(简称 ichiral series), ichiral series可拆分的手性化合物广泛。
※chiralpak® ib n-5/ib n-3与chiralpak® ib/ib-3(填料粒径:5µm/3µm)的手性填料均为纤维素三(3,5-二甲基苯基氨基甲酸酯),ib n-5/ib n-3在保持ib/ib-3分离倾向的同时,大幅改善了分离度,不仅在分析中提高了分离性能,应用于分离纯化时也可提升制备效率。
多糖衍生物键合型手性色谱柱一览表
填料粒径5μm 填料粒径3μm 填料粒径1.6μm
ia


ib


ib n

-
ic


id


ie

-
if

-
ig


ih


ij

-
ik

-
im chiralpak® im
chiralpak® im-3
-
ichiral series的特性
溶剂使用广泛
可使用各种互溶的溶剂作为流动相和溶解样品的溶剂,溶剂使用的多样性会带来新的选择能力。
正相:n-hexane, ipa, etoh
特殊流动相:ethyl acetate,ch₃cl, thf, mtbe
反相:h₂o, ipa, meoh
高分离能力
新型手性填料(chiralpak® ic/id/ie/if/ig/ik)的加入,大大提高了分离能力。而且ichiral series系列所有型号手性柱都有填料粒径为3μm的规格。部分型号推出了1.6μm填料粒径的规格,适用于uhplc,进一步提高了分离能力。
良好的耐受性
ichiral series手性柱是通过化学键合的方式将多糖衍生物固定在硅胶上,对于乙醇、乙醚、乙酸乙酯以及卤代溶剂具有良好的耐受力,能够将反应液简单过滤后进到手性柱中,节省了分析前处理的时间。
可再生修复
在使用一段时间以后,手性柱的分离能力可能会由于正常损耗而有所下降。ichiral serise可使用特定的溶剂来进行手性柱再生,以恢复手性柱的分离能力。再生方法请参考使用说明书。
使用寿命长
因填料与硅胶之间结合方式牢固,可耐受多种溶剂。在复杂的溶剂中更稳定,不用担心手性柱因溶剂使用不当而使涂敷的填料被溶解,造成手性柱损坏。
正/反相模式均适用
可通过合适的溶剂置换,实现同支手性柱既可用于正相模式也可用于反相模式。提供内径为2.1mm规格的微粒柱,使用反相流动相体系时,可在lc-ms中使用。
流动相
ichiral series系列可使用各类溶剂作为流动相或者溶解样品的溶剂(请注意溶剂之间的互溶性),举例如下:
  • 正己烷 (n-hexane)

  • 二甲基亚砜 (dmso)

  • 异丙醇 (ipa)

  • 氯仿 (trichloromethane)

  • 甲基叔丁基醚 (mtbe)

  • 乙腈 (acetonitrile)

  • 二氯甲烷 (dichloromethane)

  • 甲苯 (methylbenzene)

  • 四氢呋喃 (thf)

  • 1,4-二氧六环(1,4-dioxane)

  • 乙酸乙酯 (acetic ether)

  • 水 (h2o)

应用实例

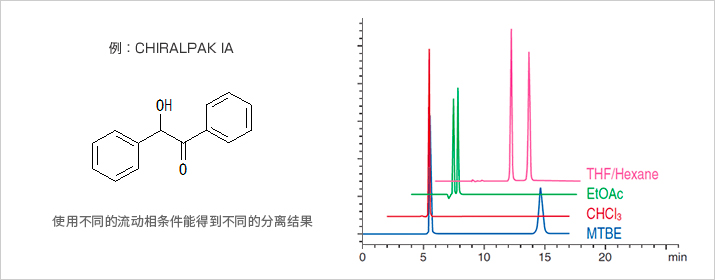

ichiral series系列可以选择各种溶剂作为流动相,扩大了色谱分析和制备条件的范围内,可在实验过程中选择适合的流动相条件。

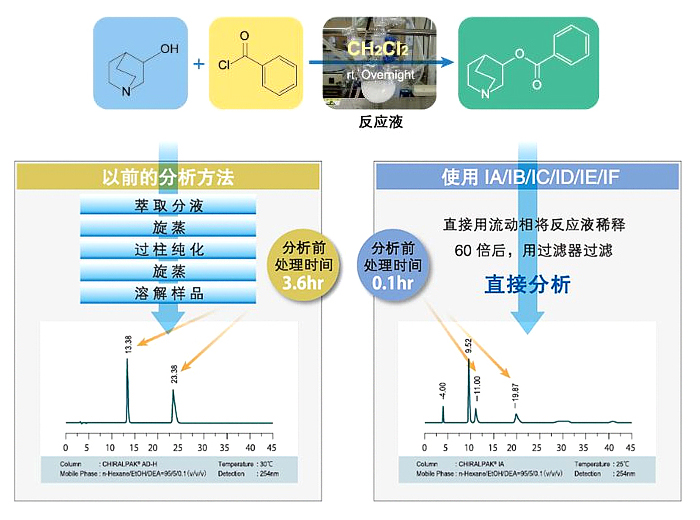

由于可以使用各种溶剂,因此可以将“反应混合物”直接注入耐溶剂手性柱中,从而节省分析前处理的麻烦和时间。
相关文献
● profiling of branched chain and straight chain saturated fatty acids by ultra-high performance liquid chromatography-mass spectrometry, x. fu, n. hafza, f. götz, m. lämmerhofer, j. chromatogr. a, 1703, issue #16, (2023)
●
the chiral separation of the ( ) and (-) enantiomers of cannabidiol, w. umstead, cannabis science and technology, 5, issue #5, (2022), 30-34
●
the separation of several organophosphate pesticides on immobilized polysaccharide chiral stationary phases, w. champion jr, w. watts jr, w. umstead, chirality, 34, issue #8, (2022), 1078-1093
●
on/off receptor-like enantioseparation of planar chiral 1,2-ferrocenes on an amylose-based chiral stationary phase: the role played by 2-propanol, c. cantatore, m. korb, h. lang, r. cirilli, analytica chimica acta, 1211, (2022)
●
characteristic and complementary chiral recognition ability of four recently developed immobilized chiral stationary phases based on amylose and cellulose phenyl carbamates and benzoates, t. onishi, t. ueda, k. yoshida, k. uosaki, h. ando, r. hamasaki, a. ohnishi, chiralty, (2022), 1-16
●
investigation of retention behavior of natural cannabinoids on differently substituted polysaccharide-based chiral stationary phases under reversed-phase liquid chromatographic conditions, c. de luca, a. buratti, w. umstead, p. franco, a. cavazzini, s. felletti, m. catani, j. chromatogr. a, 1672, (2022)
●
single-run chemo- and enantio-selective high-performance liquid chromatography separation of tramadol and its principal metabolite, o-desmethyltramadol, using a chlorinated immobilized amylose-based chiral stationary phase under multimodal elution conditions, c. cantatore, g. la regina, r. ferretti, r. silvestri, r. cirilli, sep sci plus, (2022), 1-6
●
towards enantioselective ultrahigh performance liquid chromatography–mass spectrometry-based metabolomics of branched-chain fatty acids and anteiso-fatty acids under reversed-phase conditions using sub-2-μm amylose- and cellulose-derived chiral stationary phases, c. geibel, l. zhang, k. serafimov, h. gross, m. lämmerhofer, chiralty, (2022), 1-14
●
doe optimization empowers the automated preparation of enantiomerically pure [18f]talazoparib and its in vivo evaluation as a parp radiotracer, g. d. bowden, s. stotz, j. kinzler, c. geibel, m. lämmerhofer, b. j. pichler, a. maurer, j. med. chem., 64, issue #21, (2021), 15690–15701
●
the separation of cannabinoids on sub-2 μm immobilized polysaccharide chiral stationary phases, t. onishi, w. j. umstead, pharmaceuticals, 14, issue #12, (2021)
●
the separation of several minor cannabinoids via chiral hplc, w. j. umstead, cannabis science and technology, 4, issue #6, (2021), 44-51
●
enantiomeric methadone quantitation on real post-mortem dried matrix spots samples: comparison of liquid chromatography and supercritical fluid chromatography coupled to mass spectrometry, f. mueller, g.l. losacco, r. nicoli, d. guillarme, a. thomas, e. grata, j. chromatogr b., (2021)
●
solvent versatility of immobilized 3,5-dimethylphenylcarbamate of amylose in enantiomeric separations by hplc, t. zhang, c. kientzy, p. franco, a. ohnishi, y. kagamihara, h. kurosawa, j. chromatogr. a, 1075 (2005) 65-75
● cellulose 3,5-dimethylphenylcarbamate immobilized on silica: a new chiral stationary phase for the analysis of enantiomers, t. zhang, d. nguyen, p. franco, t. murakami, a. ohnishi, h. kurosawa, anal. chim. acta, 557 (2006) 221-228
● cellulose tris(3,5-dichlorophenylcarbamate) immobilised on silica: a novel chiral stationary phase for resolution of enantiomers, t. zhang, d. nguyen, p. franco, y. isobe, t. michishita, t. murakami, j. pharm. biochem. anal., 46 (2008) 882-891
● common approaches for efficient method development with immobilised polysaccharide-derived chiral stationary phases, p. franco, t. zhang, j. chromatogr. b, 875 (2008) 48
● enantiomer resolution screening strategy using multiple immobilised polysaccharide-based chiral stationary phases, t. zhang, d. nguyen, p. franco, j. chromatogr. a, 1191 (2008) 214-222
● complementary enantiorecognition patterns and specific method optimization aspects on immobilized polysaccharide-derived chiral stationary phases, t. zhang, p. franco, d. nguyen. r. hamasaki, s. miyamoto, a. ohnishi. t. murakamo, j. chromatogr. a, 1269 (2012) 178–188
